There is anybody who uses ZABBIX to monitoring the FEC?
I am new on the zabbix, I´m doing some progress catching the results of interfaces, SNR, but I´m trying to make the FEC results, no success until now

You can do it

Yes, create a bash script to gather the info using ssh from the CMTS
After that create a new External Item in Zabbix using that script
Then you can filter the script output using regexp to obtain the numerical value
Then Zabbix convert this numerical value in a graph
It is not that easy the first time, but in some hours you will get that working

Telegraf - Grafana

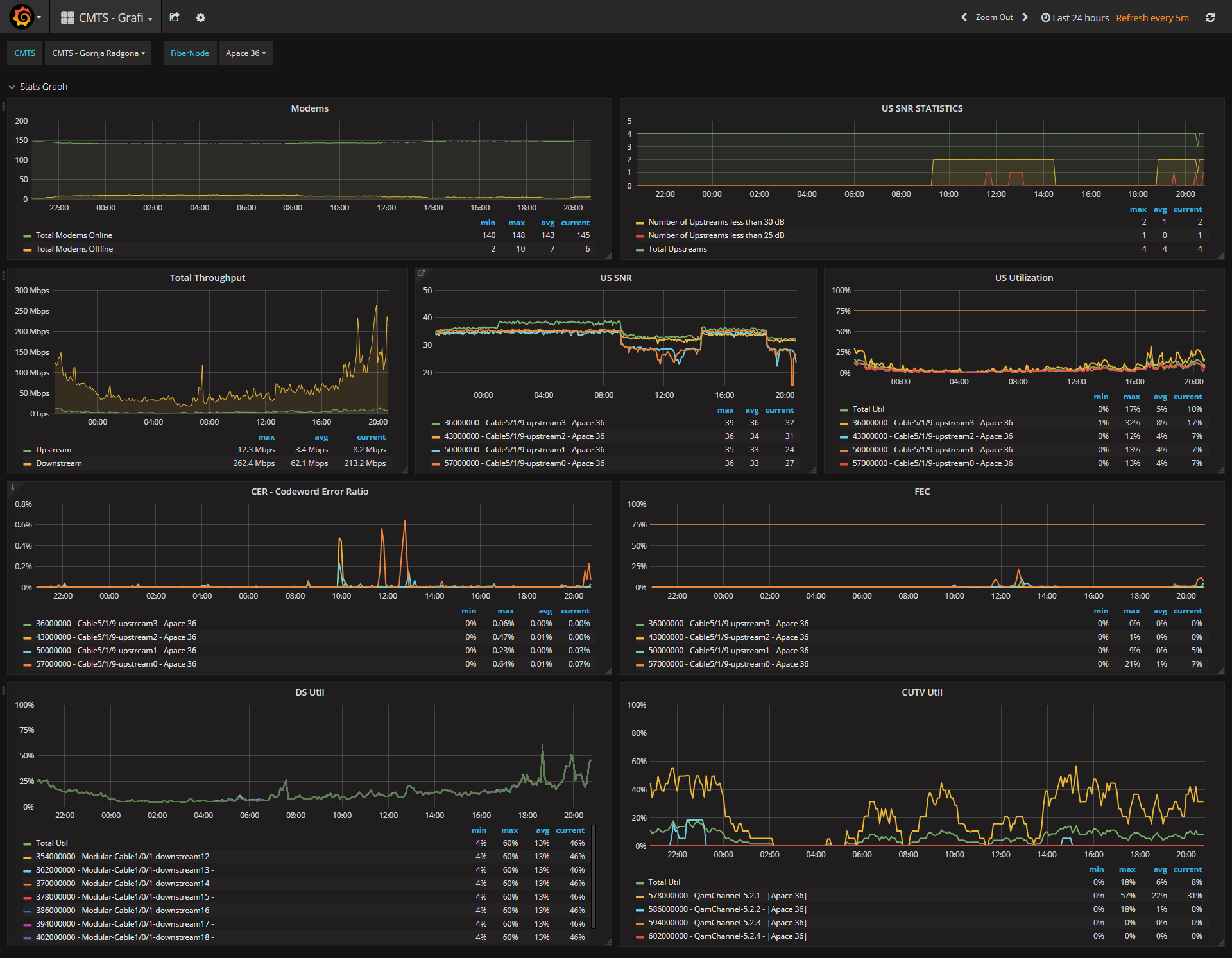

You should use telegraf and grafana. It will make your life easy. Please see the attached picture on how it can be done/viewed. Contact me: if you would like to know how to do it.


File attachments:
