Help Problem of not reaching nor 1Mb of Upload Cable modem in cmts c3 arris
AttachmentSize
Image icon Config File CM 30.04 KB

Good morning

I have a problem, I tell you that my cable modems do not exceed 2Mb of upload, in the tests I do only show up to 20 Mb of download but upload only 512Kb and for more than try it does not rise even a Mb, then I will detail the configuration file of my cable modem to see if any opinion or someone who has gone through the same problem gives me their support.

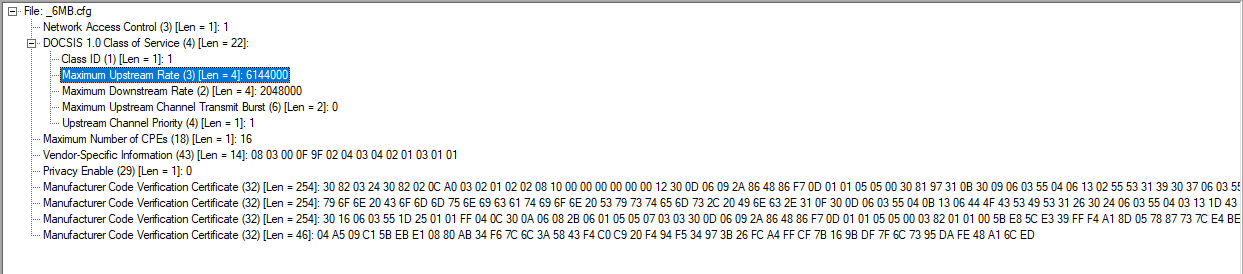

I will attach the Image of my Config File that I am using for my aproving.

Config CMTS C3 ARRIS

interface Cable 1/0
cable utilization-interval 10
cable insertion-interval automatic
cable sync-interval 10
cable ucd-interval 2000
cable max-ranging-attempts 16
cable sid-verify
cable flap-list size 500
cable flap-list power-adjust 3
cable flap-list aging 259200
cable flap-list insertion-time 180
description ""
no shutdown
! mac-address 0000.cafe.524d
load-interval 300
snmp trap link-status
ip address 10.X.X.X 255.255.X.X
ip address 172.X.X.X 255.255.X.X secondary
no allow-ip-only
management-access
no cable source-verify
arp-broadcast-echo
l2-broadcast-echo
l2-multicast-echo
ip-broadcast-echo
ip-multicast-echo
no l2-broadcast-throttle
no downstream-dhcp-server-allowed
throttle-credits initial 15 running 2
ip access-group 101 in
ip access-group 101 out
ip igmp enable
ip dhcp relay
ip dhcp relay information option
no ip dhcp relay validate renew
ip dhcp relay non-broadcast
cable helper-address 172.17.0.1
cable dhcp-giaddr policy
cable downstream rate-limit token-bucket max-traffic-burst 3044
cable downstream admission-control 100
no cable downstream admission-limit
cable downstream broadcast service-class default
cable downstream multicast service-class default
cable downstream multicast admission-limit 90
no cable downstream priority-qos
cable downstream mac-mode docsis
cable downstream channel-id 1
cable downstream tsid 0
cable downstream channel-width 6mhz
cable downstream frequency 405000000
cable downstream interleave-depth 32
cable downstream modulation 256qam
cable downstream power-level 58
cable privacy accept-self-signed-certificate
no cable privacy check-cert-validity-periods
cable privacy kek life-time 604800
cable privacy tek life-time 43200
no cable shared-secret

cable upstream 0 description
no cable upstream 0 shutdown
cable upstream 0 snmp trap link-status
cable upstream 0 mac-mode docsis

cable upstream 0 frequency 35000000
cable upstream 0 channel-width 3200000
cable upstream 0 power-level 0 auto
cable upstream 0 low-power-offset -60
cable upstream 0 high-power-offset 60
cable upstream 0 group-id 1
cable upstream 0 plant-length 160
cable upstream 0 initial-ranging-delay 300
cable upstream 0 periodic-maintenance-interval 1000
cable upstream 0 short-periodic-maintenance-interval 100
cable upstream 0 minimum-unfrag-burst 600
cable upstream 0 admission-control 100
cable upstream 0 dominant-interval default
no cable upstream 0 admission-limit
cable upstream 0 voice-timeout 1
no cable upstream 0 priority-qos
no cable upstream 0 fixed-receive
no cable upstream 0.0 description
no cable upstream 0.0 shutdown
no cable upstream 0.0 snmp trap link-status
cable upstream 0.0 channel-id 1
cable upstream 0.0 channel-type TDMA
cable upstream 0.0 modulation-profile 1
cable upstream 0.0 pre-equalization
cable upstream 0.0 minislot-size 8
cable upstream 0.0 trigger-index 0
cable upstream 0.0 snr-timeconstant 4
cable upstream 0.0 mer-timeconstant 8
cable upstream 0.0 rng-prm-guard 1
cable upstream 0.0 nrng-prm-guard 2
no cable upstream 0.0 ingress-cancellation
no cable upstream 0.0 impulse-mitigation
cable upstream 0.0 safe-config
cable upstream 0.0 extended-frequency-detect all-ranging
cable upstream 0.0 concatenation
cable upstream 0.0 fragmentation
cable upstream 0.0 contention-opp-latency 10000
cable upstream 0.0 contention-opps-with-data required
cable upstream 0.0 rate-limit
no cable upstream 0.0 priority-requests
cable upstream 0.0 tdma-minislot-mode ticks-constant
cable upstream 0.0 mer-measurement-mode rng-only
cable upstream 0.0 data-backoff automatic
cable upstream 0.0 range-backoff automatic
cable upstream 0.0 status activate
no cable upstream 0.1 description
cable upstream 0.1 shutdown
no cable upstream 0.1 snmp trap link-status
cable upstream 0.1 channel-id 7
cable upstream 0.1 channel-type TDMA
cable upstream 0.1 modulation-profile 1
no cable upstream 0.1 pre-equalization
cable upstream 0.1 minislot-size 8
cable upstream 0.1 trigger-index 0
cable upstream 0.1 snr-timeconstant 4
cable upstream 0.1 mer-timeconstant 8
cable upstream 0.1 rng-prm-guard 1
cable upstream 0.1 nrng-prm-guard 2
no cable upstream 0.1 ingress-cancellation
no cable upstream 0.1 impulse-mitigation
cable upstream 0.1 safe-config
cable upstream 0.1 extended-frequency-detect all-ranging
cable upstream 0.1 concatenation
cable upstream 0.1 fragmentation
cable upstream 0.1 contention-opp-latency 10000
cable upstream 0.1 contention-opps-with-data required
cable upstream 0.1 rate-limit
no cable upstream 0.1 priority-requests
cable upstream 0.1 tdma-minislot-mode ticks-constant
cable upstream 0.1 mer-measurement-mode rng-only
cable upstream 0.1 data-backoff automatic
cable upstream 0.1 range-backoff automatic
cable upstream 0.1 status activate
cable upstream 1 description "Luigi"
no cable upstream 1 shutdown
cable upstream 1 snmp trap link-status
cable upstream 1 mac-mode docsis

cable upstream 1 frequency 29000000
cable upstream 1 channel-width 1600000
cable upstream 1 power-level -3 auto
cable upstream 1 low-power-offset -60
cable upstream 1 high-power-offset 60
cable upstream 1 group-id 2
cable upstream 1 plant-length 160
cable upstream 1 initial-ranging-delay 300
cable upstream 1 periodic-maintenance-interval 1000
cable upstream 1 short-periodic-maintenance-interval 100
cable upstream 1 minimum-unfrag-burst 600
cable upstream 1 admission-control 150
cable upstream 1 dominant-interval default
no cable upstream 1 admission-limit
cable upstream 1 voice-timeout 1
no cable upstream 1 priority-qos
no cable upstream 1 fixed-receive
no cable upstream 1.0 description
no cable upstream 1.0 shutdown
no cable upstream 1.0 snmp trap link-status
cable upstream 1.0 channel-id 2
cable upstream 1.0 channel-type TDMA
cable upstream 1.0 modulation-profile 1
no cable upstream 1.0 pre-equalization
cable upstream 1.0 minislot-size 8
cable upstream 1.0 trigger-index 0
cable upstream 1.0 snr-timeconstant 4
cable upstream 1.0 mer-timeconstant 8
cable upstream 1.0 rng-prm-guard 1
cable upstream 1.0 nrng-prm-guard 2
no cable upstream 1.0 ingress-cancellation
no cable upstream 1.0 impulse-mitigation
cable upstream 1.0 safe-config
cable upstream 1.0 extended-frequency-detect all-ranging
cable upstream 1.0 concatenation
cable upstream 1.0 fragmentation
cable upstream 1.0 contention-opp-latency 10000
cable upstream 1.0 contention-opps-with-data required
cable upstream 1.0 rate-limit
no cable upstream 1.0 priority-requests
cable upstream 1.0 tdma-minislot-mode ticks-constant
cable upstream 1.0 mer-measurement-mode rng-only
cable upstream 1.0 data-backoff automatic
cable upstream 1.0 range-backoff automatic
cable upstream 1.0 status activate
cable upstream 1.1 description "Luigi"
cable upstream 1.1 shutdown
no cable upstream 1.1 snmp trap link-status
cable upstream 1.1 channel-id 8
cable upstream 1.1 channel-type TDMA
cable upstream 1.1 modulation-profile 1
no cable upstream 1.1 pre-equalization
cable upstream 1.1 minislot-size 8
cable upstream 1.1 trigger-index 0
cable upstream 1.1 snr-timeconstant 4
cable upstream 1.1 mer-timeconstant 8
cable upstream 1.1 rng-prm-guard 1
cable upstream 1.1 nrng-prm-guard 2
no cable upstream 1.1 ingress-cancellation
no cable upstream 1.1 impulse-mitigation
cable upstream 1.1 safe-config
cable upstream 1.1 extended-frequency-detect all-ranging
cable upstream 1.1 concatenation
cable upstream 1.1 fragmentation
cable upstream 1.1 contention-opp-latency 10000
cable upstream 1.1 contention-opps-with-data required
cable upstream 1.1 rate-limit
no cable upstream 1.1 priority-requests
cable upstream 1.1 tdma-minislot-mode ticks-constant
cable upstream 1.1 mer-measurement-mode rng-only
cable upstream 1.1 data-backoff automatic
cable upstream 1.1 range-backoff automatic
cable upstream 1.1 status activate
no cable upstream 2 description
cable upstream 2 shutdown
cable upstream 2 snmp trap link-status
cable upstream 2 mac-mode docsis

cable upstream 2 frequency 20000000
cable upstream 2 channel-width 3200000
cable upstream 2 power-level -4 fixed
cable upstream 2 low-power-offset -60
cable upstream 2 high-power-offset 60
cable upstream 2 group-id 3
cable upstream 2 plant-length 160
cable upstream 2 initial-ranging-delay 300
cable upstream 2 periodic-maintenance-interval 1000
cable upstream 2 short-periodic-maintenance-interval 100
cable upstream 2 minimum-unfrag-burst 600
cable upstream 2 admission-control 100
cable upstream 2 dominant-interval default
no cable upstream 2 admission-limit
cable upstream 2 voice-timeout 1
no cable upstream 2 priority-qos
no cable upstream 2 fixed-receive
no cable upstream 2.0 description
cable upstream 2.0 shutdown
no cable upstream 2.0 snmp trap link-status
cable upstream 2.0 channel-id 3
cable upstream 2.0 channel-type TDMA
cable upstream 2.0 modulation-profile 1
no cable upstream 2.0 pre-equalization
cable upstream 2.0 minislot-size 4
cable upstream 2.0 trigger-index 0
cable upstream 2.0 snr-timeconstant 4
cable upstream 2.0 mer-timeconstant 8
cable upstream 2.0 rng-prm-guard 1
cable upstream 2.0 nrng-prm-guard 2
no cable upstream 2.0 ingress-cancellation
no cable upstream 2.0 impulse-mitigation
cable upstream 2.0 safe-config
cable upstream 2.0 extended-frequency-detect all-ranging
cable upstream 2.0 concatenation
cable upstream 2.0 fragmentation
cable upstream 2.0 contention-opp-latency 10000
cable upstream 2.0 contention-opps-with-data required
cable upstream 2.0 rate-limit
no cable upstream 2.0 priority-requests
cable upstream 2.0 tdma-minislot-mode ticks-constant
cable upstream 2.0 mer-measurement-mode rng-only
cable upstream 2.0 data-backoff automatic
cable upstream 2.0 range-backoff automatic
cable upstream 2.0 status activate
no cable upstream 2.1 description
cable upstream 2.1 shutdown
no cable upstream 2.1 snmp trap link-status
cable upstream 2.1 channel-id 9
cable upstream 2.1 channel-type SCDMA
cable upstream 2.1 scdma-active-codes 126
cable upstream 2.1 scdma-codes-per-slot 2
cable upstream 2.1 scdma-frame-size 16
cable upstream 2.1 scdma-hopping-seed 0
cable upstream 2.1 modulation-profile 6
no cable upstream 2.1 pre-equalization
cable upstream 2.1 trigger-index 0
cable upstream 2.1 snr-timeconstant 4
cable upstream 2.1 mer-timeconstant 8
cable upstream 2.1 rng-prm-guard 1
cable upstream 2.1 nrng-prm-guard 0
no cable upstream 2.1 ingress-cancellation
no cable upstream 2.1 impulse-mitigation
cable upstream 2.1 safe-config
cable upstream 2.1 extended-frequency-detect all-ranging
cable upstream 2.1 concatenation
cable upstream 2.1 fragmentation
cable upstream 2.1 contention-opp-latency 10000
cable upstream 2.1 contention-opps-with-data required
cable upstream 2.1 rate-limit
no cable upstream 2.1 priority-requests
cable upstream 2.1 tdma-minislot-mode ticks-constant
cable upstream 2.1 mer-measurement-mode rng-only
cable upstream 2.1 data-backoff automatic
cable upstream 2.1 range-backoff automatic
cable upstream 2.1 status activate
no cable upstream 3 description
cable upstream 3 shutdown
cable upstream 3 snmp trap link-status
cable upstream 3 mac-mode docsis

cable upstream 3 frequency 25000000
cable upstream 3 channel-width 3200000
cable upstream 3 power-level -4 fixed
cable upstream 3 low-power-offset -60
cable upstream 3 high-power-offset 60
cable upstream 3 group-id 4
cable upstream 3 plant-length 160
cable upstream 3 initial-ranging-delay 300
cable upstream 3 periodic-maintenance-interval 1000
cable upstream 3 short-periodic-maintenance-interval 100
cable upstream 3 minimum-unfrag-burst 600
cable upstream 3 admission-control 100
cable upstream 3 dominant-interval default
no cable upstream 3 admission-limit
cable upstream 3 voice-timeout 1
no cable upstream 3 priority-qos
no cable upstream 3 fixed-receive
no cable upstream 3.0 description
cable upstream 3.0 shutdown
no cable upstream 3.0 snmp trap link-status
cable upstream 3.0 channel-id 4
cable upstream 3.0 channel-type TDMA
cable upstream 3.0 modulation-profile 1
no cable upstream 3.0 pre-equalization
cable upstream 3.0 minislot-size 4
cable upstream 3.0 trigger-index 0
cable upstream 3.0 snr-timeconstant 4
cable upstream 3.0 mer-timeconstant 8
cable upstream 3.0 rng-prm-guard 1
cable upstream 3.0 nrng-prm-guard 2
no cable upstream 3.0 ingress-cancellation
no cable upstream 3.0 impulse-mitigation
cable upstream 3.0 safe-config
cable upstream 3.0 extended-frequency-detect all-ranging
cable upstream 3.0 concatenation
cable upstream 3.0 fragmentation
cable upstream 3.0 contention-opp-latency 10000
cable upstream 3.0 contention-opps-with-data required
cable upstream 3.0 rate-limit
no cable upstream 3.0 priority-requests
cable upstream 3.0 tdma-minislot-mode ticks-constant
cable upstream 3.0 mer-measurement-mode rng-only
cable upstream 3.0 data-backoff automatic
cable upstream 3.0 range-backoff automatic
cable upstream 3.0 status activate
no cable upstream 3.1 description
cable upstream 3.1 shutdown
no cable upstream 3.1 snmp trap link-status
cable upstream 3.1 channel-id 10
cable upstream 3.1 channel-type SCDMA
cable upstream 3.1 scdma-active-codes 126
cable upstream 3.1 scdma-codes-per-slot 2
cable upstream 3.1 scdma-frame-size 16
cable upstream 3.1 scdma-hopping-seed 0
cable upstream 3.1 modulation-profile 6
no cable upstream 3.1 pre-equalization
cable upstream 3.1 trigger-index 0
cable upstream 3.1 snr-timeconstant 4
cable upstream 3.1 mer-timeconstant 8
cable upstream 3.1 rng-prm-guard 1
cable upstream 3.1 nrng-prm-guard 0
no cable upstream 3.1 ingress-cancellation
no cable upstream 3.1 impulse-mitigation
cable upstream 3.1 safe-config
cable upstream 3.1 extended-frequency-detect all-ranging
cable upstream 3.1 concatenation
cable upstream 3.1 fragmentation
cable upstream 3.1 contention-opp-latency 10000
cable upstream 3.1 contention-opps-with-data required
cable upstream 3.1 rate-limit
no cable upstream 3.1 priority-requests
cable upstream 3.1 tdma-minislot-mode ticks-constant
cable upstream 3.1 mer-measurement-mode rng-only
cable upstream 3.1 data-backoff automatic
cable upstream 3.1 range-backoff automatic
cable upstream 3.1 status activate
no cable upstream 4 description
cable upstream 4 shutdown
cable upstream 4 snmp trap link-status
cable upstream 4 mac-mode docsis

cable upstream 4 frequency 30000000
cable upstream 4 channel-width 3200000
cable upstream 4 power-level -4 fixed
cable upstream 4 low-power-offset -60
cable upstream 4 high-power-offset 60
cable upstream 4 group-id 5
cable upstream 4 plant-length 160
cable upstream 4 initial-ranging-delay 300
cable upstream 4 periodic-maintenance-interval 1000
cable upstream 4 short-periodic-maintenance-interval 100
cable upstream 4 minimum-unfrag-burst 600
cable upstream 4 admission-control 100
cable upstream 4 dominant-interval default
no cable upstream 4 admission-limit
cable upstream 4 voice-timeout 1
no cable upstream 4 priority-qos
no cable upstream 4 fixed-receive
no cable upstream 4.0 description
cable upstream 4.0 shutdown
no cable upstream 4.0 snmp trap link-status
cable upstream 4.0 channel-id 5
cable upstream 4.0 channel-type TDMA
cable upstream 4.0 modulation-profile 1
no cable upstream 4.0 pre-equalization
cable upstream 4.0 minislot-size 4
cable upstream 4.0 trigger-index 0
cable upstream 4.0 snr-timeconstant 4
cable upstream 4.0 mer-timeconstant 8
cable upstream 4.0 rng-prm-guard 1
cable upstream 4.0 nrng-prm-guard 2
no cable upstream 4.0 ingress-cancellation
no cable upstream 4.0 impulse-mitigation
cable upstream 4.0 safe-config
cable upstream 4.0 extended-frequency-detect all-ranging
cable upstream 4.0 concatenation
cable upstream 4.0 fragmentation
cable upstream 4.0 contention-opp-latency 10000
cable upstream 4.0 contention-opps-with-data required
cable upstream 4.0 rate-limit
no cable upstream 4.0 priority-requests
cable upstream 4.0 tdma-minislot-mode ticks-constant
cable upstream 4.0 mer-measurement-mode rng-only
cable upstream 4.0 data-backoff automatic

ip rip v2-broadcast
no ip directed-broadcast
no ip source-verify
no ip source-verify subif
ip l2-bg-to-bg-routing
ip verify-ip-address-filter
!
!
! unattached subinterfaces
!
interface FastEthernet 0/1
no description
no shutdown
! mac-address 0000.cafe.524c
duplex auto
snmp trap link-status
load-interval 300
no allow-ip-only
no management-access
no ip directed-broadcast
no ip source-verify
no ip source-verify subif
no ip l2-bg-to-bg-routing
ip verify-ip-address-filter
!
!
interface Cable 1/0.1
no shutdown
no allow-ip-only
no management-access
no cable source-verify
arp-broadcast-echo
l2-broadcast-echo
l2-multicast-echo
ip-broadcast-echo
ip-multicast-echo
no l2-broadcast-throttle
no downstream-dhcp-server-allowed
throttle-credits initial 15 running 2
encapsulation dot1q 1 native
no encapsulation dot1q 1 encrypted-multicast
ip igmp disable
no ip dhcp relay
no ip dhcp relay information option
no ip dhcp relay validate renew
ip dhcp relay non-broadcast
cable helper-address 172.X.X.X
no cable dhcp-giaddr
ip rip v2-broadcast
no ip directed-broadcast
no ip source-verify
no ip source-verify subif
no ip l2-bg-to-bg-routing
ip verify-ip-address-filter
!
!

!
ip default-gateway 172.X.X.X
ip route 0.0.0.0 0.0.0.0 172.X.X.X
!
!
!
arp timeout 14400
!
cable modulation-profile 1 request AdvPhy TDMA
cable modulation-profile 1 request 0 16 0 8 qpsk scrambler 338 no-diff 64 fixed
cable modulation-profile 1 initial AdvPhy TDMA
cable modulation-profile 1 initial 5 34 0 48 qpsk scrambler 338 no-diff 640 fixed
cable modulation-profile 1 station AdvPhy TDMA
cable modulation-profile 1 station 5 34 0 48 qpsk scrambler 338 no-diff 384 fixed
cable modulation-profile 1 short AdvPhy TDMA
cable modulation-profile 1 short 6 78 15 8 qpsk scrambler 338 no-diff 84 shortened
cable modulation-profile 1 long AdvPhy TDMA
cable modulation-profile 1 long 8 220 0 8 qpsk scrambler 338 no-diff 96 shortened
cable modulation-profile 2 request AdvPhy TDMA
cable modulation-profile 2 request 0 16 0 8 qpsk scrambler 338 no-diff 64 fixed
cable modulation-profile 2 initial AdvPhy TDMA
cable modulation-profile 2 initial 5 34 0 48 qpsk scrambler 338 no-diff 640 fixed
cable modulation-profile 2 station AdvPhy TDMA
cable modulation-profile 2 station 5 34 0 48 qpsk scrambler 338 no-diff 384 fixed
cable modulation-profile 2 short AdvPhy TDMA
cable modulation-profile 2 short 8 78 8 8 16qam scrambler 338 no-diff 168 shortened
cable modulation-profile 2 long AdvPhy TDMA
cable modulation-profile 2 long 10 220 0 8 16qam scrambler 338 no-diff 192 shortened
cable modulation-profile 3 request AdvPhy TDMA&ATDMA 1 0
cable modulation-profile 3 request 0 16 0 8 qpsk scrambler 338 no-diff 64 fixed
cable modulation-profile 3 initial AdvPhy TDMA&ATDMA 1 0
cable modulation-profile 3 initial 5 34 0 48 qpsk scrambler 338 no-diff 640 fixed
cable modulation-profile 3 station AdvPhy TDMA&ATDMA 1 0
cable modulation-profile 3 station 5 34 0 48 qpsk scrambler 338 no-diff 384 fixed
cable modulation-profile 3 short AdvPhy TDMA&ATDMA 1 0
cable modulation-profile 3 short 6 78 15 8 qpsk scrambler 338 no-diff 84 shortened
cable modulation-profile 3 long AdvPhy TDMA&ATDMA 1 0
cable modulation-profile 3 long 8 220 0 8 qpsk scrambler 338 no-diff 96 shortened
cable modulation-profile 3 advPhyS AdvPhy TDMA&ATDMA 1 1536
cable modulation-profile 3 advPhyS AdvPhy preamble-type qpsk1
cable modulation-profile 3 advPhyS 12 78 6 8 64qam scrambler 338 no-diff 104 shortened
cable modulation-profile 3 advPhyL AdvPhy TDMA&ATDMA 1 1536
cable modulation-profile 3 advPhyL AdvPhy preamble-type qpsk1
cable modulation-profile 3 advPhyL 16 220 0 8 64qam scrambler 338 no-diff 104 shortened
cable modulation-profile 3 advPhyU AdvPhy TDMA&ATDMA 1 1536
cable modulation-profile 3 advPhyU AdvPhy preamble-type qpsk1
cable modulation-profile 3 advPhyU 12 78 0 8 64qam scrambler 338 no-diff 104 shortened
cable modulation-profile 4 request AdvPhy TDMA&ATDMA 1 0
cable modulation-profile 4 request 0 16 0 8 qpsk scrambler 338 no-diff 64 fixed
cable modulation-profile 4 initial AdvPhy TDMA&ATDMA 1 0
cable modulation-profile 4 initial 5 34 0 48 qpsk scrambler 338 no-diff 640 fixed
cable modulation-profile 4 station AdvPhy TDMA&ATDMA 1 0
cable modulation-profile 4 station 5 34 0 48 qpsk scrambler 338 no-diff 384 fixed

cmcaldas
chnll width / modulation /modem file

Hi MESCANO1
I believe your using modulation profile 1, qpsk and your channel width is 1.6Mhz wide. that's about 1.7Mb shared bandwidth.
what's the upstream snr? if it's 21 and higher, use mod profile 2. channel width, possible to make it 3.2Mhz wide?
your modem profile has 0 for upstream burst, try 20000 and rest.
please post your results

Log in or register to post comments
