fails to create interface bundle

7 posts / 0 new
Last post
MESCANO1
fails to create interface bundle
AttachmentSize

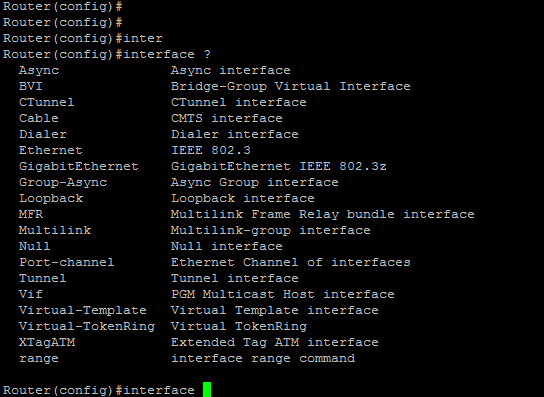

Image icon interface bundle not21.67 KB
Image icon show version.png67 KB

Good day friends.
I have problems creating interface bundle in cmts cisco ubr7246 since it does not show the option to create it, any idea of ​​this error?

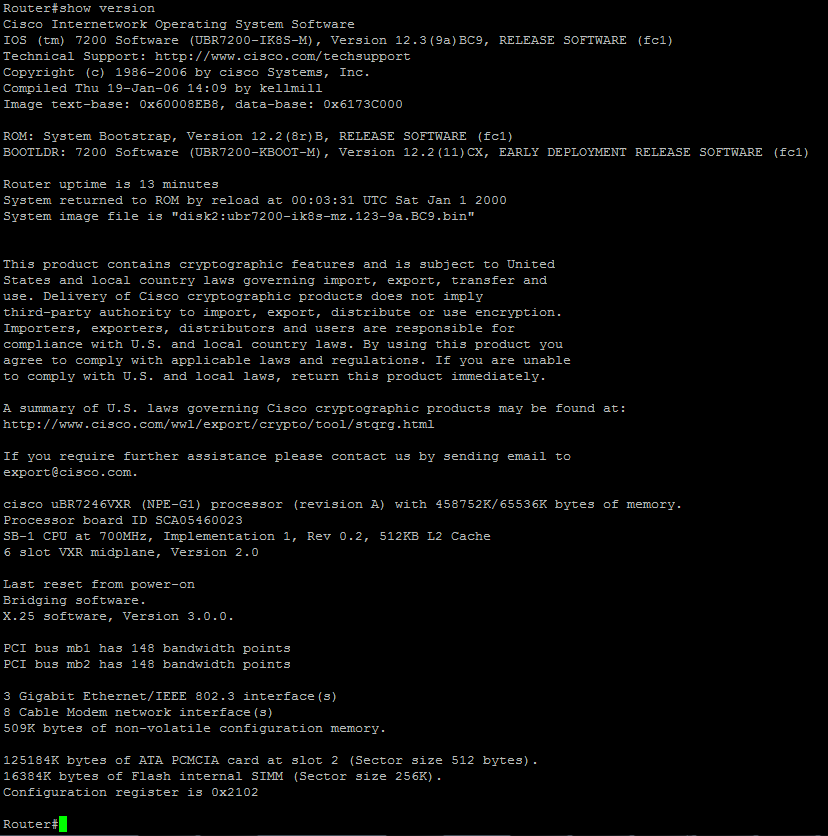

I attached show version of my cmts

---------------------------------------------------------
Router#show version
Cisco Internetwork Operating System Software
IOS (tm) 7200 Software (UBR7200-IK8S-M), Version 12.3(9a)BC9, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2006 by cisco Systems, Inc.
Compiled Thu 19-Jan-06 14:09 by kellmill
Image text-base: 0x60008EB8, data-base: 0x6173C000

ROM: System Bootstrap, Version 12.2(8r)B, RELEASE SOFTWARE (fc1)
BOOTLDR: 7200 Software (UBR7200-KBOOT-M), Version 12.2(11)CX, EARLY DEPLOYMENT RELEASE SOFTWARE (fc1)

Router uptime is 13 minutes
System returned to ROM by reload at 00:03:31 UTC Sat Jan 1 2000
System image file is "disk2:ubr7200-ik8s-mz.123-9a.BC9.bin"

This product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.

A summary of U.S. laws governing Cisco cryptographic products may be found at:
http://www.cisco.com/wwl/export/crypto/tool/stqrg.html

If you require further assistance please contact us by sending email to
export@cisco.com.

cisco uBR7246VXR (NPE-G1) processor (revision A) with 458752K/65536K bytes of memory.
Processor board ID SCA05460023
SB-1 CPU at 700MHz, Implementation 1, Rev 0.2, 512KB L2 Cache
6 slot VXR midplane, Version 2.0

Last reset from power-on
Bridging software.
X.25 software, Version 3.0.0.

PCI bus mb1 has 148 bandwidth points
PCI bus mb2 has 148 bandwidth points

3 Gigabit Ethernet/IEEE 802.3 interface(s)
8 Cable Modem network interface(s)
509K bytes of non-volatile configuration memory.

125184K bytes of ATA PCMCIA card at slot 2 (Sector size 512 bytes).
16384K bytes of Flash internal SIMM (Sector size 256K).
Configuration register is 0x2102

mbowe
Cisco website says

Cisco website says :

Cisco IOS Release 12.3(13a)BC first introduced support for virtual interface bundling on the Cisco uBR10012 universal broadband router and the Cisco uBR10-MC5X20S/U/H Broadband Processing Engine (BPE), and the Cisco uBR7246VXR router.

In prior Cisco IOS releases, cable interface bundling was limited to physical interfaces as master or slave interfaces, and show commands did not supply bundle information.

MESCANO1
I have any alternative to be

I have any alternative to be able to solve this problem?
since my provisioning requires a bundle.

I would have to switch from OS to my cmts to use this feature. or is there simply another method?

mbowe
You need to upgrade the IOS.

You need to upgrade the IOS.

Not just to get access to the bundle feature, but also all the other features / bugfixes etc. Your IOS is very old (2006!)

MESCANO1
Which IOS do you recommend?

Which IOS do you recommend?

any clue where to get it?

since it is a cmts purchased on ebay so I do not have cisco support.

but if I need to put it in my cable plant and I'm having this problem ..

do you have any place to get a functional valid ios from?

I really appreciate your time and attention to my problem. !!

mbowe
Latest for ubr7246vxr

Latest for ubr7246vxr is 12.3.17b-BC9 (From 2009)

Here are the file names (suggest try googling....)

DOCSIS 2-WAY BPI IP+ LAWFUL INTERCEPT
ubr7200-ik8su2-mz.123-17b.BC9.bin

DOCSIS 2-WAY 3DES IP+ LAWFUL INTERCEPT
ubr7200-ik9su2-mz.123-17b.BC9.bin

DOCSIS 2-WAY BPI LAWFUL INTERCEPT
ubr7200-k8pu2-mz.123-17b.BC9.bin

DOCSIS 2-WAY 3DES LAWFUL INTERCEPT
ubr7200-k9pu2-mz.123-17b.BC9.bin

BOOT IMAGE
ubr7200-boot-mz.123-17b.BC9.bin

BOOT IMAGE (KBOOT)
ubr7200-kboot-mz.123-17b.BC9.bin

MESCANO1
good night friends.

good night friends.

I appreciate the help provided by mbowe.

I managed to correct my problem effectively by updating my IOS on my CMTS. I can create the bundle I need.

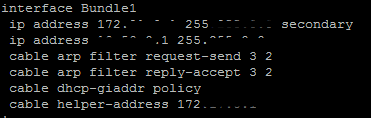

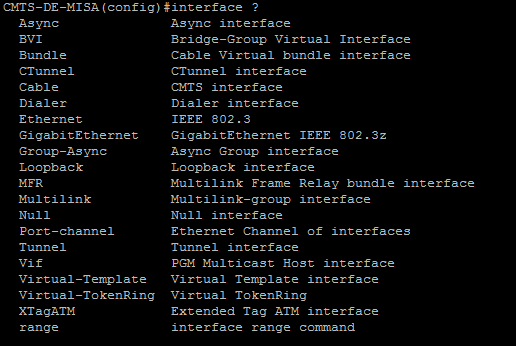

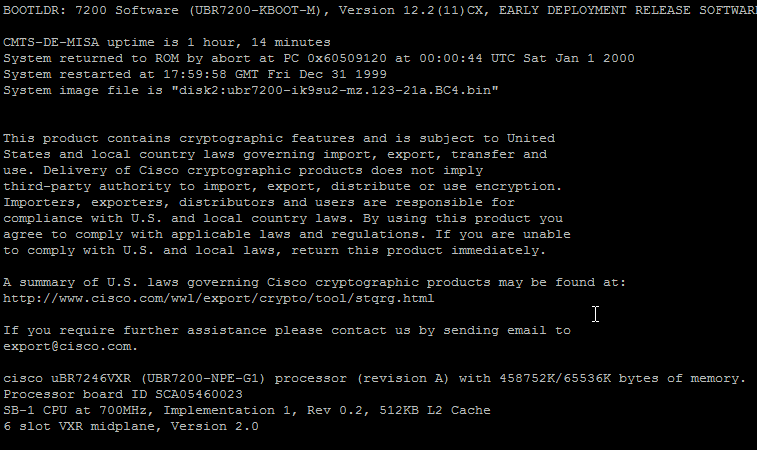

I attach screenshots.
greetings and hugs.
